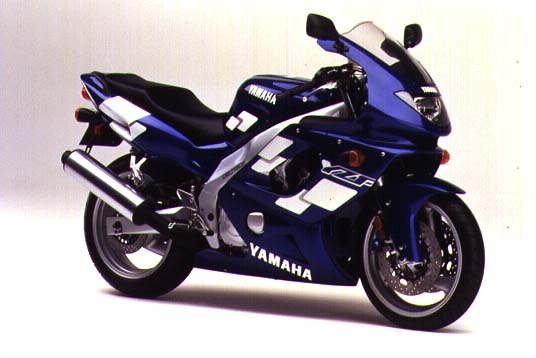

1997 Yamaha YZF600R
|
Technical Specifications |
|
|
|
|
|
|
|
|
|
|
|
|
|
ENGINE |
|
Type |
|
Liquid cooled, 4-Stroke DOHC |
|
|
|
|
Displacement |
|
599cc |
|
|
|
|
Horsepower |
|
94.6 bhp @ 11,000 rpm |
|
|
|
|
Torque |
|
47.72 ft-lb @ 9500 rpm |
|
|
|
|
Bore & Stroke |
|
62.0 mm x 49.6 mm (2.441 in. x 1.953 in.) |
|
|
|
|
Compression Ratio |
|
12.0:1 |
|
|
|
|
Fuel System |
|
Normally aspirated by four Keihin CVKD36 |
|
|
|
|
Valvetrain |
|
4 valves per cylinder |
|
|
|
|
Ignition system |
|
Digital T.C.I., electric start, 12V/10AH battery |
|
|
|
|
|
|
|
|
|
DRIVETRAIN |
|
Clutch |
|
Wet-type, multiple disc |
|
|
|
|
Transmission |
|
Constant mesh, 6-speed |
|
|
|
|
Primary reduction |
|
2 spur gear |
|
|
|
|
Secondary reduction |
|
chain drive |
|
|
|
|
Gear ratios |
1st |
2.846:1 |
|
|
|
|
|
2nd |
1.947:1 |
|
|
|
|
|
3rd |
1.545:1 |
|
|
|
|
4th |
1.333:1 |
|
|
|
|
|
|
5th |
1.190:1 |
|
|
|
|
|
6th |
1.074:1 |
|
|
|
|
|
|
|
|
|
CHASSIS/SUSPENSION |
|
Chassis type |
|
Aluminum diamond, 25 degree caster angle |
|
|
|
|
Overall length |
|
81.1" |
2060mm |
|
|
|
Overall width |
|
28.5" |
725mm |
|
|
|
Overall height |
|
46.9" |
1190mm |
|
|
|
Seat height |
|
31.7" |
805mm |
|
|
|
Wheelbase |
|
55.7" |
1415mm |
|
|
|
Ground clearance |
|
5.31" |
135mm |
|
|
|
Dry weight |
|
412lbs |
187 kg |
|
|
|
Front suspension |
|
Telescopic fork, 5.12" travel (130mm) |
|
|
|
|
Rear suspension |
|
Swingarm Link, 4.7" travel (120mm) |
|
|
|
|
Shock absorber, front |
|
coil spring, oil damper |
|
|
|
|
Shock absorber, rear |
|
coil-gas spring, oil damper |
|
|
|
|
|
|
|
|
|
STEERING/BRAKING |
|
Steering type |
|
Taper roller bearing |
|
|
|
|
Lock to lock angle |
|
30 degrees left, 30 degrees right |
|
|
|
|
Front brake |
|
Dual disc, 298mm |
|
|
|
|
Rear brake |
|
Single disc, 245mm |
|
|
|
|
|
|
|
|
|
WHEELS/TIRES |
|
Front wheel |
|
Cast aluminum, 17xMT3.50 |
|
|
|
|
Front tire |
|
120/60 ZR17 |
|
|
|
|
Rear wheel |
|
Cast aluminum, 17xMT5.00 |
|
|
|
|
Rear tire |
|
160/60 ZR17 |
|
