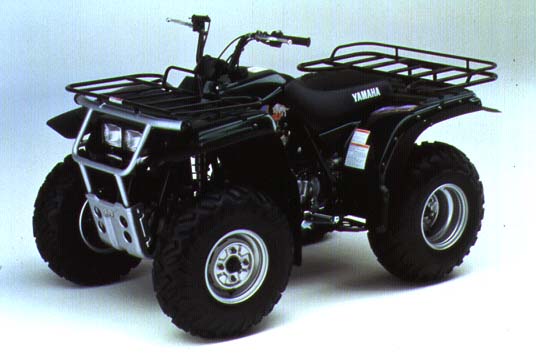

1997 Yamaha Timberwolf 4WD
|
Technical Specifications |
|
|
|
|
|
|
|
|
|
|
|
ENGINE |
|
Type |
|
Air cooled, 4-stroke, SOHC, single |
|
|
|
Displacement |
|
229.6cc |
|
|
|
Bore & Stroke |
|
71mm x 58mm |
|
|
|
Compression Ratio |
|
8.7:1 |
|
|
|
Fuel System |
|
normally aspirated w/single Mikuni VM24SH |
|
|
|
Ignition system |
|
CDI, Electric 12v 12AH |
|
|
|
|
|
|
|
DRIVETRAIN |
|
Clutch |
|
Wet-type, multiple disc, automatic |
|
|
|
Transmission |
|
Constant mesh, 5-speed with reverse |
|
|
|
Primary reduction |
|
2 spur gear - 73/22:3.318 |
|
|
|
Secondary reduction |
|
Shaft drive - 20/17x46/11:4.920 |
|
|
|
Gear ratios |
1st |
2.833:1 |
|
|
|
|
2nd |
1.889:1 |
|
|
|
|
3rd |
1.318:1 |
|
|
|
|
4th |
1.040:1 |
|
|
|
|
5th |
.828:1 |
|
|
|
|
|
|
|
CHASSIS/SUSPENSION |
|
Chassis type |
|
Steel tube frame, 3 degree caster angle |
|
|
|
Overall length |
|
72.4" |
|
|
|
Overall width |
|
40.4" |
|
|
|
Overall height |
|
43.5" |
|
|
|
Seat height |
|
31.1" |
|
|
|
Wheelbase |
|
44.1" |
|
|
|
Ground clearance |
|
6.6" |
|
|
|
Dry weight |
|
507 lbs |
|
|
|
Front suspension |
|
Double wishbone, 4.9" wheel travel (125mm) |
|
|
|
Rear suspension |
|
Swingarm Link, 4.9" wheel travel (125mm) |
|
|
|
Shock absorber, front |
|
coil spring, oil damper |
|
|
|
Shock absorber, rear |
|
coil spring, oil damper |
|
|
|
|
|
|
|
STEERING/BRAKING |
|
Steering type |
|
Taper roller bearing |
|
|
|
Front brake |
|
Dual drums |
|
|
|
Rear brake |
|
Single drum |
|
|
|
|
|
|
|
WHEELS/TIRES |
|
Front wheel |
|
10x6.0 |
|
|
|
Front tire |
|
23x8-10 |
|
|
|
Rear wheel |
|
10x8.0 |
|
|
|
Rear tire |
|
23x10-10 |
