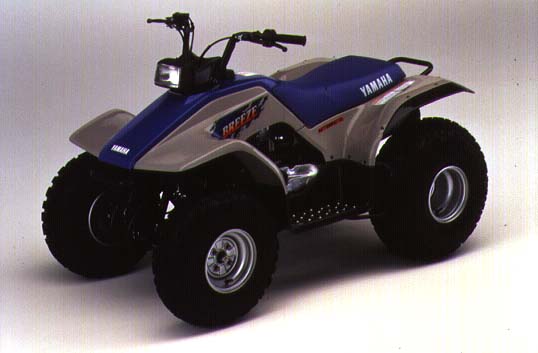

1997 Yamaha Breeze
|
Technical Specifications |
|
|
|
|
|
|
|
|
|
|
|
|
|
ENGINE |
|
Type |
|
Air cooled, 4-stroke, SOHC |
|
|
|
|
Displacement |
|
124cc |
|
|
|
|
Bore & Stroke |
|
49mm x 66mm |
|
|
|
|
Compression Ratio |
|
9.0:1 |
|
|
|
|
Fuel System |
|
normally aspirated w/single Mikuni VM18SH |
|
|
|
|
Ignition system |
|
CDI, Electric 12v 12AH |
|
|
|
|
|
|
|
|
|
DRIVETRAIN |
|
Clutch |
|
Dry centrifugal automatic |
|
|
|
|
Transmission |
|
'V-Belt, automatic w/reverse |
|
|
|
|
Primary reduction |
|
2 spur gear -43/14x40/17:7.226 |
|
|
|
|
Secondary reduction |
|
Chain drive - 320/12:2.666 |
|
|
|
|
|
|
|
|
|
CHASSIS/SUSPENSION |
|
Chassis type |
|
Steel tube frame, 6.0 degree caster angle |
|
|
|
|
Overall length |
|
64.6" |
1640mm |
|
|
|
Overall width |
|
38" |
965mm |
|
|
|
Overall height |
|
38.6" |
980mm |
|
|
|
Seat height |
|
27.2" |
690mm |
|
|
|
Wheelbase |
|
42.5" |
1080mm |
|
|
|
Ground clearance |
|
5.7" |
145mm |
|
|
|
Dry weight |
|
298lbs |
135kg |
|
|
|
Front suspension |
|
Swing-axle, 2.8" wheel travel (70mm) |
|
|
|
|
Rear suspension |
|
Swingarm Link, 3.2" wheel travel (80mm) |
|
|
|
|
Shock absorber, front |
|
coil spring, oil damper |
|
|
|
|
Shock absorber, rear |
|
coil spring, gas/oil damper |
|
|
|
|
|
|
|
|
|
STEERING/BRAKING |
|
Steering type |
|
Taper roller bearing |
|
|
|
|
Front brake |
|
Dual drums |
|
|
|
|
Rear brake |
|
Single drum |
|
|
|
|
|
|
|
|
|
WHEELS/TIRES |
|
Front wheel |
|
8x5.5 |
|
|
|
|
Front tire |
|
20x7-8 |
|
|
|
|
Rear wheel |
|
8x8.0 |
|
|
|
|
Rear tire |
|
22x10-8 |
|
