Fiat Buyers Guide

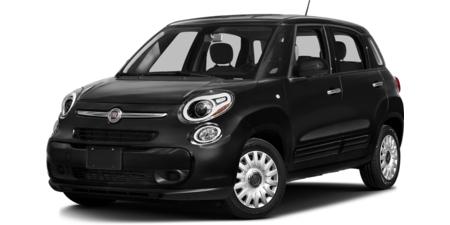

2014 Fiat 500L Easy
MSRP: $20,395
Invoice: $19,783
Gas Mileage:
CTY: 25 HWY: 33 CMB: 28
Engine/Fuel: 4 Cyl Gas
Transmission: M
Door/Body Style: 4 Door/Station Wagon,HBK
Drive Type: FWD
Prices/Warranty
See the prices and various warranties offered.- General
- MSRP: $20,395
- Invoice Price: $19,783
- Destination Charge: $0
- Warranty
- Basic (Month): 48
- Basic (Mileage): 50000
- Powertrain (Month): 48
- Powertrain (Mileage): 50000
- Rust (Month): 144
- Rust (Mileage):
Engine & Emissions
View engine and emission data on this vehicle.- Engines & Emissions
- intercooled turbo
- Roadside Assistance Warranty for 48-Months, Unlimited Miles,
- Turbocharged 1.4-Liter, I4, 16-Valve, 4, SOHC, SEFI Engine; Front/Transverse Mounted With Horsepower Of 160@5500, Torque Of 184@2500, Iron Block and Alloy Cylinder Head
- ULEV III Emissions
- Engine
- Type of Engine: 1.4L I4
- Displacement (CC): 1368
- Fuel System: SEFI
- Horsepower @ RPM: 160@5500
- Torque @ RPM: 184@2500
- Turbo: Y
- Compression ratio: 9.8
- Cylinders: 4
- RPM @ Peak Horsepower: 5500
- Bore X Stroke: 2.83x3.31
- Fuel Type: Gas
Dimensions
See the interior and exterior dimensions.- Exterior Dimensions
- Track Front: 59.1
- Track Rear: 59.4
- Ground Clearance (in): 4.7
- Overall Length (in): 166.5
- Overall Width (in): 69.8
- Overall Height (in): 65.7
- Wheelbase (in): 102.8
- Curb weight (lbs): 3203
- Interior Dimensions
- Seating capacity - Standard: 5
- Seating Capacity - Maximum: 5
- Headroom front (in): 40.7
- Headroom rear (in): 39.3
- Hip room front (in): 53.6
- Hip room rear (in): 53.0
- Leg room front (in): 40.3
- Leg room rear (in): 35.2
- Shoulder room front (in): 57.3
- Shoulder room rear (in): 54.7
Features
See the features of this vehicle.- Exterior Features
- Bodyside/Cab Step or Running Board: Not listed
- Bumper Step Up: N/A
- Front Air Dam: N/A
- Metallic Paint: Option
- Power Sliding Side Van Door: N/A
- Power Trunk Lid: Not listed
- Rear Spoiler: Standard
- Skid Plate or Underbody Protection: N/A
- Splash or Mud Guards: Not listed
- Wind Deflector or Buffer for Convertibles: N/A
- Exterior
- Automatic Headlights With Automatic Off and Time Delay
- Daytime Running Lights
- Front and Rear Body Color Bumpers
- Grille, Body Color Body Side Moldings, Cladding, Chrome Exterior Door Handles and Chrome Exhaust Pipe
- Rear Spoiler
- Single Projector Beam Halogen Headlights
- Interior Air Filter
- Manual Air Conditioning
- AM/FM Radio Seek, Scan and 6 Speakers Total; CD Player; MP3 Player
- Auxiliary Audio Input Jack
- Memory Device Reader
- MP3 Player
- Wireless Communication Access For Enabled Devices with Streaming Audio
- Automatic/Delayed Locking and Automatic Headlights
- Cruise Control
- Digital Clock
- Exterior Temperature Gauge
- Steering Wheel Mounted Controls For Audio and Cruise Control
- Tachometer
- Tire Pressure Monitor
- Trip Computer With Trip Odometer
- Voice Activated Controls For Audio and Bluetooth(R) Wireless Enabled Devices
- Warning Lights Include Coolant Temperature, Door Ajar, Electrical System, Key-In-Ignition, Low Fuel and Oil Pressure
- Alloy Wheels Front 16-in. X 6.5-in. and Rear 16-in. X 6.5-in.
- front and rear tires P205/55HR16 BSW All-Season
- Spare Tire Credit/Delete
- Exterior Auto Day/Night/Electrochromic Mirrir
- Glass Rear Window on Convertible
- Heated Exterior Mirror
- Heated Washer System
- Heated Windshield Glass
- Interior Auto Day/Night/Electrochromic Mirror
- Interval Wipers
- Oversize or Wide Angle Exterior Mirror
- Power Adjustable Exterior Mirror
- Power Backlight Window
- Rain Sensing Wipers
- Rear Wiper
- Sliding Rear Pickup Truck Window
- Tinted Glass
- Vehicle Speed Sensing Wiper Interval
- Windshield Wiper De-Icer
- Dual Body Color Folding Power Adjustable Heated Exterior Rearview Mirrors
- Front and Rear Power Windows With One-Touch Up and One-Touch Down
- Front Vanity Mirror
- Interior Conversation/Observation Mirror
- Privacy Glass/Deep Tinted Glass
- Rear Window Defroster
- Rear Window Fixed Wiper/Washer
- Variable Intermittent Windshield Wipers
Safety Features
View the built in safety features included.- Safety Features
- Driver Airbag
- Driver Knee Airbag
- Front Active Head Restraints
- Front and Rear Side Head Curtain Airbags
- Front Pretensioners
- Passenger Airbag
- Passenger Airbag Cutoff Sensor
- Rear Center 3-Point Seatbelts
- Seat Mounted Front Side Airbags
- Side Guard Door Beams
- Anti-Theft
- Locking Pickup Truck Tailgate
- Power Door Locks Operated Via Key and Remote With Automatic Locking
- Power Liftgate Lock/Unlock Via Multi-Function Remote
- Vehicle Anti-Theft Via Alarm and Engine Immobilizer
- Braking & Traction
- 4-Wheel Anti-Lock Brakes
- Brake Assistance
- Front Power 305-mm Ventilated Disc and Rear Power 264-mm Disc Brakes
- Hill Start Control
- Traction Control Controlled by Engine Management
- Vehicle Stability Control System
Read Reviews
Expert opinions you can trust.- 2014 Fiat Abarth
- 2014 Fiat 500L Heels on Wheels Review
- 2014 Fiat 500 L Review By Marty Bernstein
- 2014 Fiat 500L Review
- 2024 Fiat Reviews
- NEW CAR REVIEW: 2024 Fiat 500e
- 2017 Fiat Reviews
- 2017 Fiat 124 Topless In Chicago
- 2017 Fiat 124 Spider Review
- 2017 Fiat 124 Spider Review By Larry Nutson
- 2017 Fiat 124 Spider Review - Perfetto
- 2017 FIAT 124 Spider Elaborazione Abarth Convertible Review
- 2017 Fiat 500x Updates
- Car Review: 2017 Fiat 500x Review
- 2016 Fiat Reviews
- 2016 Fiat 500 Abarth Small But Wicked Review
- 2016 Fiat 500x With 2017 Updates
- 2016 Fiat 500X Easy AWD Review
- 2016 Fiat 500X Review By John Heilig
- 2016 Fiat 500x Trekking Plus AWD Review By Steve Purdy
- 2015 Fiat Reviews
- 2015 Fiat 500L Trekking Review By Carey Russ
- 2014 Fiat Reviews
- 2013 Fiat Reviews
- 2013 Fiat 500 Turbo and 500 E Reviews
- 2013 Fiat Abarth Review
- 2012 Fiat Reviews
- 2012 Fiat 500 Lounge Hatchback Review
- 2012 Fiat 500 Review and Roadtesta
- 2012 Fiat 500 Review
- 2012 Fiat 500 Abarth Review
- 2012 Fiat 500 Abarth Ride and Review
- 2012 Fiat 500 Abarth Review By John Heilig
- 2012 Fiart 500c Drive and Review
- 2012 Fiat 500 Gucci Review
- 2012 Fiat 500 Sport Review
Fuel Economy Guide
Research the yearly spend on gasoline for every Fiat in our database.-
The fuel economy calculations assume annual mileage of 15,000 miles, 45% of which is highway miles and 55% city miles and fuel costs of $2.79 per gallon. These figures can be adjusted to more accurately reflect your driving style and fuel costs in your area:
NHTSA Test Results
Get crash test results, service bulletins, and product recalls for every Fiat model.-
Crash Test Data for 2014 Fiat
No crash test data exists.Service Bulletins for 2014 Fiat
2014 FIAT 500 Bulletin Number: 02-006-14 Front Suspension Clunk Noise While Making Left And Right Turns This bulletin involves replacing the front strut jounce bumpers. Clunk noise coming from the front suspension. Noise may be more noticeable during cold temperatures below 40┬░F Bulletin Number: 02-006-14 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 08-002-13REV.A SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 08-004-15 FLASH: Battery Electric Vehicle, Multiple System Enhancements This bulletin involves updating the software in multiple modules, Vehicle Tracking Module (VTM), Body Control Module (BCM), On-Board Charging Module (OBCM), Power Inverter Mod Bulletin Number: 08-004-15 REVA FLASH: Battery Electric Vehicle, Multiple System Enhancements This bulletin involves updating the software in multiple modules, Vehicle Tracking Module (VTM), Body Control Module (BCM), On-Board Charging Module (OBCM), Power Inverter Modul Bulletin Number: 08-004-15 REVB FLASH: Battery Electric Vehicle, Multiple System Enhancements This bulletin involves updating the software in multiple modules, Vehicle Tracking Module (VTM), Body Control Module (BCM), On-Board Charging Module (OBCM), Power Inverter Mod Bulletin Number: 08-012-15 Intermittent Battery Drain This bulletin involves reprogramming the Body Control Module (BCM) with updated software. A small number of customers may experience a battery drain after the vehicle sits for a long period of time. Bulletin Number: 08-031-14 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 08-031-14A SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 08-040-16 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 08-044-13 Navigation Map Activation RA3 Radio This bulletin involves activating the navigation system on the RA3 radio prior to sale of the vehicle. Bulletin Number: 08-044-13 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 08-044-13REV.A SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 08-045-16 SUBJECT: Flash: Anti Lock Brake (ABS) Module System Enhancements OVERVIEW: This bulletin involves a coordinated update of the Anti-lock Brake System (ABS) module and Regenerative Brake Controller (RBC) module software SYMPTOM/CONDITI Bulletin Number: 08-048-14REV.A SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 08-048-14REV.B SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 08-051-14 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 08-052-14 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 08-055-13 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 08-057-14 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 08-057-14 REV. A Removal Of Beats Audio System This bulletin involves replacing the A-pillar trim panels, cargo covers, and amplifier. Bulletin Number: 08-057-14REV.A SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 08-057-15 Flash: Cruise Misspelled In The Instrument Panel Cluster This bulletin involves reprogramming the Instrument Panel Cluster (IPC) with updated software. The customer may notice the word ?Cruise? misspelled in the IPC. Bulletin Number: 08-070-14 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 08-088-15 Flash: RA3 Radio Software Enhancements This bulletin involves updating the radio software. The customer may experience one or more of the following: ? Display screen may lock up during very hot temperatures. ? Rear camera unintentionall Bulletin Number: 08-101-14 Convergence Telematics Module (CTM) Software Enhancements This bulletin involves inspecting and if required, replacement of the (CTM). The customer may notice that the displays on the TomTom screen may be missing some Battery Electric Vehi Bulletin Number: 17-001-14 Rear Axle Alignment Shims This bulletin is to inform service personnel of the availability of rear axle alignment shims. Bulletin Number: 18-003-16 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 18-010-15 Flash:1.4L Diagnostic And System Improvements This bulletin involves reprogramming the Powertrain Control Module (PCM) with the latest software. The customers may experience a Malfunction Indicator Lamp (MIL) illumination. Upon further Bulletin Number: 18-010-15 REV.A CHRYSLER 2014-2015 FIAT 500: SERVICE BULLETIN SUPERSEDES 18-010-15 DATED FEBRUARY 23, 2014, PLEASE REMOVE FROM YOUR FILES. INFORMATION REGARDING POWER CONTROL MODULE WITH THE LATEST SOFTWARE. *LJ UPDATED 10/08/15 *CN Bulletin Number: 18-010-15 REVA Flash:1.4L Diagnostic And System Improvements This bulletin involves reprogramming the Powertrain Control Module (PCM) with the latest software. The customers may experience a Malfunction Indicator Lamp (MIL) illumination. Upon further in Bulletin Number: 18-010-15 REVB Flash:1.4L Diagnostic And System Improvements This bulletin involves reprogramming the Powertrain Control Module (PCM) with the latest software. The customers may experience a Malfunction Indicator Lamp (MIL) illumination. Upon further Bulletin Number: 18-010-15 REV-C Flash:1.4L Diagnostic And System Improvements This bulletin involves reprogramming the Powertrain Control Module (PCM) with the latest software. The customers may experience a Malfunction Indicator Lamp (MIL) illumination. Upon further Bulletin Number: 18-010-15 REV-D Flash: 1.4L Diagnostic And System Improvements This bulletin involves reprogramming the Powertrain Control Module (PCM) with the latest software. The customers may experience a Malfunction Indicator Lamp (MIL) illumination. Upon further Bulletin Number: 18-017-14 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 18-020-14 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 18-030-13 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 18-033-13 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 18-048-14 Flash: Powertrain System Improvements For Generic Scan Tool Support This bulletin involves selectively erasing and reprogramming the Powertrain Control Module (PCM) with new software. The following Powertrain system improvement/enhancemen Bulletin Number: 18-048-14 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 18-069-14 Flash: MIL Illumination, P0141 Oxygen Sensor 1/2 Heater Performance, P061A Internal Control Module Torque Performance This bulletin involves reprogramming the Powertrain Control Module (PCM) with the latest software. The customers may exper Bulletin Number: 18-069-14 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 19-002-15 CHRYSLER 2012-2015 FIAT 500: SERVICE BULLETIN INFORMATION AND REPAIR PROCEDURE FOR NOISE IN THE STEERING COLUMN WHILE TURNING THE STEERING WHEEL. *LJ Bulletin Number: 19-002-15 Clunking Noise From The Steering Column While Turning The Steering Wheel This bulletin involves replacing the steering intermediate shaft. Clunking, popping, knocking noise from the lower steering column while turning the steering wheel. Bulletin Number: 22-004-16 "WHEEL CLICKING SOUND WHEN MOVING SLOW THIS BULLETIN INVOLVES REPLACING THE INSERTS ATTACHED TO THE WHEEL. THE CUSTOMER MAY DESCRIBE A CLICKING SOUND FROM THE WHEELS PLASTIC TRIM INSERTS WHEN MOVING SLOWLY OR WHEN STOPPED. THE ISSUE IS H Bulletin Number: 22-004-16 Wheel Clicking Sound When Moving Slow This bulletin involves replacing the inserts attached to the wheel. The customer may describe a clicking sound from the wheels plastic trim inserts when moving slowly or when stopped. The issue is he Bulletin Number: 23-025-14 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 68105583A Pentastar Oil Filter Adapter: Before replacing this part, please call any one of the following people. Engineering is seeking information regarding this part.~ Dye must be used to determine where the leak is coming from before replacing. Bulletin Number: 68277402A Adaptive Cruise Control Sensor 1) If you are replacing this part due to the cluster displaying Clean Radar Sensor in Front of Vehicle or DTC C1266 ACC Sensor Blinded, please verify that there is no blockage in front of the sensor. Blockage Bulletin Number: 9002519 82212076, 82203694 - Fabric Cleaner This "fabric cleaner" is not intended for sale in California, the otc states (Connecticut, Delaware, Massachusetts, Maine, New Hampshire, New Jersey, New York, Pennsylvania, Virginia, and Washington dc Bulletin Number: 9003355 3.2L - 3.6L Cylinder Head Assy Multiple cylinder head replacement. If a cylinder head is replaced on a vehicle more than 1 time for any reason, please call any of the following people. First: Joe Lovell - Cell (734) 309-6467 joe.lovell@fc Bulletin Number: 9003681 Restraints Information Sheet (I-Sheet) has been added to Star Parts. Print I-Sheet for technician use. Bulletin Number: 9003687 Restraints Remove I-Sheet from packaging. Correct information sheet (I-Sheet) has been added to Star Parts. Print I-Sheet for technician use. Bulletin Number: 9003694 Oil Pump Assembly If error code P06DD present on any Pentastar V6 application, please inspect oil pump for relief valve failure. See photo attached. If valve is found out of place please call Bob Jackson (248) 944-0466 bob.jackson@fcagroup Bulletin Number: D-13-29 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: MDH051407 THIS TSB CONTAINS AN OWNERS LETTER. SEE DOCUMENT SEARCH BUTTON. CHRYSLER FIAT 2014-2015 RAM PROMASTER( WITHOUT CAB CHASSIS & WITH CAB CHASIS). EMISSION RECALL APPLIES TO VEHICLES EQUIPPED WITH A 3.0L DIESEL ENGINE AND EQUIPPED WITH 3.6 L Bulletin Number: RL108213A$ NAG1 (5A580) Valve Body As per Warranty Bulletin D-13-22, please use R2108213A$ valve body for all Warranty (W), Mopar (M) and Mopar Vehicle Protection (F) claims.~ Assembly also includes Filter (52108325AA) and Gasket (52108332AA).~ Bulletin Number: SB-18-033-13-A FIAT: A DIAGNOSTIC TROUBLE CODE WAS SET, P113D-O2 SENSOR 1/1 SLOW RESPONSE, ON SOME VEHICLES EXPERIENCING MALFUNCTION INDICATOR LAMP (MIL) ILLUMINATION, INVOLVING FLASHING POWERTRAIN CONTROL MODULE (PCM). MODEL 2014 500L. *PE Bulletin Number: SB-21-008-13 FIAT: INFORMATION BEING PROVIDED REGARDING THE TRANSMISSION CONTROL MODULE (TCM) INVOLVING THE MALFUNCTION INDICATOR LAMP (MIL) ILLUMINATION FLASHING. MODEL 2014 500L. *PE Bulletin Number: Z5091195A$ RES / RHA / REB radio that supports Bluetooth and Hands-Free For issues with Bluetooth, Hands-Free Calling, and/or Voice Commands, DO NOT replace the radio. Diagnose the Hands-Free Module system (also called the Telematics Module). The T 2014 FIAT 500E Bulletin Number: 08-004-15 REV.A CHRYSLER 2013-2015 FIAT 500E: THIS BULETIN SUPERSEDES 08-004-15 DATED JAN. 09, 2015 PLEASE REMOVE FROM YOUR FILES. BULLETIN INFORMATION REGARDING UPDATING MODULES SOFTWARE: VTM, BCM, OBCM, PIM, AND BPCM IF REQUIRED. *LJ UPDATED 8/25/15. Bulletin Number: 08-040-16 Flash: BCM Diagnostic And System Improvements This bulletin involves updating the Body Control Module (BCM) software. Some customers may describe that the soft top will not open when pressing the unlock button for more than three seconds Bulletin Number: 08-045-16 Flash: Anti Lock Brake (ABS) Module System Enhancements This bulletin involves a coordinated update of the Anti-lock Brake System (ABS) module and Regenerative Brake Controller (RBC) module software. ┬╖ U0001-00 - CAN C BUS. (Sets in ABS a Bulletin Number: 08-045-16 SUBJECT: Flash: Anti Lock Brake (ABS) Module System Enhancements OVERVIEW: This bulletin involves a coordinated update of the Anti-lock Brake System (ABS) module and Regenerative Brake Controller (RBC) module software. SYMPTOM/CONDITIO Bulletin Number: 08-048-14 Flash: Vehicle Enhancements This bulletin involves updating the software in multiple modules, Vehicle Tracking Module (VTM), Body Control Module (BCM), On-Board Charging Module (OBCM), Power Inverter Module (PIM), Battery Pack Control Mo Bulletin Number: 08-048-14 SUMMARY TO BE PROVIDED ON A FUTURE DATE. Bulletin Number: 08-048-14 REV. A Flash: Vehicle Enhancements This bulletin involves updating the software in multiple modules, Vehicle Tracking Module (VTM), Body Control Module (BCM), On-Board Charging Module (OBCM), Power Inverter Module (PIM), Battery Pack Control Mo Bulletin Number: 08-048-14 REV. B Flash: Vehicle Enhancements This bulletin involves updating the software in multiple modules, Vehicle Tracking Module (VTM), Body Control Module (BCM), On-Board Charging Module (OBCM), Power Inverter Module (PIM) and Electric Vehicle Contr Bulletin Number: 08-048-16 FLASH: Electric Vehicle Control Unit (EVCU) System Enhancements This bulletin involves updating the software in the EVCU. A small number of customers may experience a Malfunction Indicator Lamp (MIL) illumination. Upon further investigati Bulletin Number: 08-048-16 SUBJECT: FLASH: Electric Vehicle Control Unit (EVCU) System Enhancements OVERVIEW: This bulletin involves updating the software in the EVCU. SYMPTOM/CONDITION: A small number of customers may experience a Malfunction Indicator Lamp ( Bulletin Number: 18-003-16 Flash: 1.4L Diagnostic And System Improvements This bulletin involves reprogramming the Powertrain Control Module (PCM) with the latest software. Customers may experience a Malfunction Indicator Lamp (MIL) illumination. Bulletin Number: 18-003-16 REV. A Flash: 1.4L Diagnostic And System Improvements This bulletin involves reprogramming the Powertrain Control Module (PCM) with the latest software. Customers may experience a Malfunction Indicator Lamp (MIL) illumination. Upon further inv Bulletin Number: 22-004-16 REV. A Wheel Clicking Sound When Moving Slow This bulletin involves replacing the inserts attached to the wheel The customer may describe a clicking sound from the wheel?s plastic trim inserts when moving slowly or when stopped. The issue is he Bulletin Number: 23-025-14 Instrument Panel 500 Nameplate Not Fully Seated This bulletin involves replacing the "500" nameplate on the instrument panel. The customer may describe a gap between the "500" nameplate and the instrument panel bezel. Bulletin Number: 68105583A Pentastar Oil Filter Adapter: Before replacing this part, please call any one of the following people. Engineering is seeking information regarding this part.~ Dye must be used to determine where the leak is coming from before replacing. Bulletin Number: 68277402A Adaptive Cruise Control Sensor 1) If you are replacing this part due to the cluster displaying Clean Radar Sensor in Front of Vehicle or DTC C1266 ACC Sensor Blinded, please verify that there is no blockage in front of the sensor. Blockage Bulletin Number: 9002519 82212076, 82203694 - Fabric Cleaner This "fabric cleaner" is not intended for sale in California, the otc states (Connecticut, Delaware, Massachusetts, Maine, New Hampshire, New Jersey, New York, Pennsylvania, Virginia, and Washington dc Bulletin Number: 9003178 The steering angle sensor on Fiat 500 is serviced as part of the Electric Power Steering (EPS) steering column not the Clockspring.~ Please refer to section 19 EPS steering column for service procedures.~ Bulletin Number: 9003355 3.2L - 3.6L Cylinder Head Assy Multiple cylinder head replacement. If a cylinder head is replaced on a vehicle more than 1 time for any reason, please call any of the following people. First: Joe Lovell - Cell (734) 309-6467 joe.lovell@fc Bulletin Number: 9003681 Restraints Information Sheet (I-Sheet) has been added to Star Parts. Print I-Sheet for technician use. Bulletin Number: 9003687 Restraints Remove I-Sheet from packaging. Correct information sheet (I-Sheet) has been added to Star Parts. Print I-Sheet for technician use. Bulletin Number: 9003694 Oil Pump Assembly If error code P06DD present on any Pentastar V6 application, please inspect oil pump for relief valve failure. See photo attached. If valve is found out of place please call Bob Jackson (248) 944-0466 bob.jackson@fcagroup Bulletin Number: RL108213A$ NAG1 (5A580) Valve Body As per Warranty Bulletin D-13-22, please use R2108213A$ valve body for all Warranty (W), Mopar (M) and Mopar Vehicle Protection (F) claims.~ Assembly also includes Filter (52108325AA) and Gasket (52108332AA).~ Bulletin Number: S20 Customer Satisfaction Notification S20 Reprogram Powertrain Control Module The Powertrain Control Module (PCM) software on about 81,000 of the above vehicles may have backup lamp illumination timing that does not meet customer expectations Bulletin Number: Z5091195A$ RES / RHA / REB radio that supports Bluetooth and Hands-Free For issues with Bluetooth, Hands-Free Calling, and/or Voice Commands, DO NOT replace the radio. Diagnose the Hands-Free Module system (also called the Telematics Module). The T 2014 FIAT 500L Bulletin Number: 08-002-13 REV. A How To Activate The Navigation Maps On A RA3 Radio Bulletin Number: 08-025-16 Flash: RA3 Radio Software Enhancements This bulletin involves updating the radio software The customer may experience one or more of the following: ┬╖ **Under MORE screen, the compass always indicates a fixed position and will not change Bulletin Number: 08-031-14 Flash: RA3 Radio Software Enhancements This bulletin involves updating the radio's software. The customer may notice one or more of the following. Radio resets. Radio sluggish performance. Bluetooth dropped connections. Hands free cal Bulletin Number: 08-051-14 Odometer Flashing And B10AA-4A- Check Configuration Failed - Incorrect Component Installed This bulletin involves a Body Control Module (BCM) Proxi Alignment, for proper operation. The customer may notice that the Odometer is flashing. On Bulletin Number: 08-052-14 Fog Lamps Stay On With High Beams This bulletin involves performing a Misc Function procedure, for proper fog lamp operation. The customer may notice that the fog lamps stay on when the headlamp high beams are on. Bulletin Number: 08-070-14 Flash: Oil Pressure Indicator Flashes When The Change Engine Oil Message Is Displayed This bulletin involves updating the Instrument Panel Cluster (IPC) with new software. Customer may notices that the oil pressure indicator flashes when Bulletin Number: 18-017-14 Flash: Improved Engine Crank Times And Engine Performance Enhancements This bulletin involves selectively erasing and reprogramming the Powertrain Control Module (PCM) with new software. Customers may experience MIL Illumination P113D- O2 Bulletin Number: 18-020-14 Flash: Transmission Control Module Body Control Module And Instrument Cluster Interface Enhancements to Improved Transmission Performance This bulletin involves selectively erasing and reprogramming the Transmission Control Module (TCM), Bulletin Number: 18-033-15 Flash: 1.4L Powertrain Diagnostic And System Improvements This bulletin involves reprogramming the Powertrain Control Module (PCM) with the latest available software. A small number of customers may experience long crank times on engine s Bulletin Number: 18-033-15 REV A Flash: 1.4L Powertrain Diagnostic And System Improvements This bulletin involves reprogramming the Powertrain Control Module (PCM) with the latest available software. A small number of customers may experience a Malfunction Indicator Lam Bulletin Number: 68105583A Pentastar Oil Filter Adapter: Before replacing this part, please call any one of the following people. Engineering is seeking information regarding this part.~ Dye must be used to determine where the leak is coming from before replacing. Bulletin Number: 68277402A Adaptive Cruise Control Sensor 1) If you are replacing this part due to the cluster displaying Clean Radar Sensor in Front of Vehicle or DTC C1266 ACC Sensor Blinded, please verify that there is no blockage in front of the sensor. Blockage Bulletin Number: 9002519 82212076, 82203694 - Fabric Cleaner This "fabric cleaner" is not intended for sale in California, the otc states (Connecticut, Delaware, Massachusetts, Maine, New Hampshire, New Jersey, New York, Pennsylvania, Virginia, and Washington dc Bulletin Number: 9003355 3.2L - 3.6L Cylinder Head Assy Multiple cylinder head replacement. If a cylinder head is replaced on a vehicle more than 1 time for any reason, please call any of the following people. First: Joe Lovell - Cell (734) 309-6467 joe.lovell@fc Bulletin Number: 9003681 Restraints Information Sheet (I-Sheet) has been added to Star Parts. Print I-Sheet for technician use. Bulletin Number: 9003687 Restraints Remove I-Sheet from packaging. Correct information sheet (I-Sheet) has been added to Star Parts. Print I-Sheet for technician use. Bulletin Number: 9003694 Oil Pump Assembly If error code P06DD present on any Pentastar V6 application, please inspect oil pump for relief valve failure. See photo attached. If valve is found out of place please call Bob Jackson (248) 944-0466 bob.jackson@fcagroup Bulletin Number: P06030614 New Safety Recall Advanced Communication ? P06030614 Chrysler Group LLC (Chrysler) announced a safety recall on certain 2014 model year (BF) Fiat 500L vehicles equipped with a six-speed Dual Dry Clutch automatic transaxle. The Gear Shift Bulletin Number: RL108213A$ NAG1 (5A580) Valve Body As per Warranty Bulletin D-13-22, please use R2108213A$ valve body for all Warranty (W), Mopar (M) and Mopar Vehicle Protection (F) claims.~ Assembly also includes Filter (52108325AA) and Gasket (52108332AA).~ Bulletin Number: Z5091195A$ RES / RHA / REB radio that supports Bluetooth and Hands-Free For issues with Bluetooth, Hands-Free Calling, and/or Voice Commands, DO NOT replace the radio. Diagnose the Hands-Free Module system (also called the Telematics Module). The T Recalls for 2014 Fiat
2014 FIAT 500 NHTSA Campaign ID: POWER TRAIN:AUTOMATIC TRANSMISSION Manufacturer: Chrysler (FCA US LLC) Manufacture Dates: 03/08/2013 - 03/07/2015 Potential Units Affected: 3851 Defect Description:
Chrysler (FCA US LLC) is recalling certain model year 2013-2015 Fiat 500 battery electric vehicles manufactured March 8, 2013, to March 7, 2015. The Electric Vehicle Control Unit (EVCU) of the affected vehicles may set a diagnostic trouble code (DTC) that may cause the transmission to unexpectedly shift to neutral.
Consequence:
If the vehicle unexpectedly shifts to neutral, the loss of drive could increase the risk of a crash.
Action:
Chrysler will notify owners, and dealers will reprogram the EVCU, free of charge. The recall began June 19, 2015. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is R20.
2014 FIAT 500 NHTSA Campaign ID: POWER TRAIN:MANUAL TRANSMISSION Manufacturer: Chrysler (FCA US LLC) Manufacture Dates: 06/21/2010 - 01/12/2016 Potential Units Affected: 39185 Defect Description:
Chrysler (FCA US LLC) is recalling certain model year 2012-2016 Fiat 500 vehicles manufactured June 21, 2010, through January 12, 2016, equipped with a manual transmission. The clutch diaphragm spring may fracture and fail, causing an inability to switch gears.
Consequence:
If the clutch diaphragm spring fails, the driver may not be able to shift gears or the vehicle may lose motive power, increasing the risk of a crash.
Action:
The remedy for this recall will include the installation of a clutch pedal limiter and a clutch pedal switch. The recall began on November 10, 2016. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is S34.
2014 FIAT 500E NHTSA Campaign ID: ELECTRICAL SYSTEM:BATTERY Manufacturer: Chrysler (FCA US LLC) Manufacture Dates: 03/27/2012 - 11/01/2014 Potential Units Affected: 5660 Defect Description:
Chrysler (FCA US LLC) is recalling certain model year 2013-2015 Fiat 500 EV vehicles manufactured March 27, 2012, to November 1, 2014. If the vehicle goes in to limp home mode, incompatible software between Electric Vehicle Control Unit (EVCU) and Battery Pack Control Module (BPCM) may cause the electric propulsion system to fully shut down.
Consequence:
An electric propulsion system shut down will cause a stall-like condition, increasing the risk of a crash.
Action:
Chrysler will notify owners, and dealers will update the vehicle software to ensure compatability between components, free of charge. The recall began on May 21, 2015. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is R15.
2014 FIAT 500E NHTSA Campaign ID: ELECTRICAL SYSTEM: BATTERY: PROPULSION SYSTEM Manufacturer: Chrysler (FCA US LLC) Manufacture Dates: 03/22/2012 - 01/29/2016 Potential Units Affected: 16584 Defect Description:
Chrysler (FCA US LLC) is recalling certain model year 2013-2016 Fiat 500e vehicles manufactured March 22, 2012, to January 29, 2016. The power inverter module (PIM) may experience voltage spikes which can cause the propulsion system to shut down and loss of motive power.
Consequence:
Loss of motive power can increase the risk of a crash.
Action:
Chrysler will notify owners, and dealers will update the PIM software, free of charge. The recall began on July 5, 2016. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is S26.
2014 FIAT 500E NHTSA Campaign ID: ELECTRICAL SYSTEM: BATTERY: PROPULSION SYSTEM Manufacturer: Chrysler Group LLC Manufacture Dates: 09/24/2012 - 04/04/2014 Potential Units Affected: 4141 Defect Description:
Chrysler Group, LLC (Chrysler) is recalling certain model year 2013-2014 Fiat 500e Battery Electric Vehicles (BEV) vehicles manufactured September 24, 2012, through April 4, 2014. The affected vehicles have cooling plates for the Power Inverter Module (PIM) that may leak coolant into areas of the high voltage circuitry, resulting a short circuit that could cause the related service fuse to blow.
Consequence:
If the service fuse blows, the vehicle would have a loss of propulsion while driving, increasing the risk of a crash.
Action:
Chrysler will notify owners, and dealers will replace the PIM, free of charge. The recall began in July 2014. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is P23.
2014 FIAT 500L NHTSA Campaign ID: POWER TRAIN:AUTOMATIC TRANSMISSION:CONTROL MODULE (TCM, PCM) Manufacturer: Chrysler (FCA US LLC) Manufacture Dates: 03/06/2013 - 10/14/2014 Potential Units Affected: 25583 Defect Description:
Chrysler (FCA US LLC) is recalling certain 2014 Fiat 500L vehicles. The Powertrain Control Module (PCM) software calibration maybe incorrect, limiting the engine to idle speed and torque even when accelerator pedal is fully pressed.
Consequence:
If the vehicle does not accelerate as expected, there may be an increased risk of a crash.
Action:
Chrysler will notify owners, and dealers will update the PCM software, free of charge. The recall began April 13, 2017. Owners may the Fiat Information Center at 1-888-242-6342. Chrysler's number for this recall is T19.
2014 FIAT 500L NHTSA Campaign ID: POWER TRAIN:AUTOMATIC TRANSMISSION Manufacturer: Chrysler Group LLC Manufacture Dates: 04/05/2013 - 01/22/2014 Potential Units Affected: 18100 Defect Description:
Chrysler Group LLC (Chrysler) is recalling certain model year 2014 Fiat 500L vehicles manufactured April 5, 2013, through January 22, 2014. In certain temperatures, moving the transmission shift lever may have a delayed effect or no effect on selecting a transmission gear.
Consequence:
If there is no effect, the vehicle might not shift out of the Park position. If there is a delayed effect, the vehicle may move in an unintended or unexpected direction, increasing the risk of a crash.
Action:
Chrysler will notify owners, and dealers will replace the shifter module or update the shifter software, as necessary, free of charge. The recall began on March 31, 2014. Owners may contact Chrysler at 1-800-853-1403. Chrysler's number associated with this recall is P06.
2014 FIAT 500L NHTSA Campaign ID: AIR BAGS:KNEE BOLSTER Manufacturer: Chrysler Group LLC Manufacture Dates: 03/03/2012 - 07/25/2014 Potential Units Affected: 25479 Defect Description:
Chrysler Group LLC (Chrysler) is recalling certain model year 2014-2015 Fiat 500L vehicles manufactured March 3, 2012, to July 25, 2014. Irregularities in the folding process during assembly of the driver's knee airbag may result in its improper deployment. As such, these vehicles fail to comply with Federal Motor Vehicle Safety Standard No. 208, "Occupant Crash Protection."
Consequence:
If the knee airbag air bag does not deploy properly during a crash, there is an increased risk of driver injury.
Action:
Chrysler will notify owners, and dealers will replace the driver's knee air bag, free of charge. The recall began on September 26, 2014. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is P42.
