All-New Volvo V40 - World-First Pedestrian Airbag Technology
SYDNEY – Feb 19, 2013: In China 25 percent of traffic fatalities are pedestrians. In Europe the figure is 14 percent and in the USA 12 percent. Far larger numbers of pedestrians are injured.
The most serious head injuries involving pedestrians and cars are caused by the hard structure under the bonnet panel, the windscreen’s lower edge and the A-pillars.
These were some of the considerations when Volvo Car Group started development of its Pedestrian Airbag technology. The system was a world-first breakthrough when the All-New Volvo V40 was first launched at the Geneva Motorshow in March 2012.
“We are proud to be able to offer a car with an airbag for pedestrians,” says Thomas Broberg, Senior Technical Advisor Safety, Volvo Car Group.
“The purpose of the airbag is to help protect pedestrians in certain situations when they impact the bonnet and the area around the windscreen wiper recess and A-pillar, where there may be a risk of serious head injuries.”
Seven sensors embedded in the front of the car transmit signals to a control unit. When the car comes into contact with an object, the signals change. The control unit evaluates the signals and if it registers what it interprets as a human leg the pedestrian airbag is deployed.
The bonnet hinges are each equipped with pyrotechnical release mechanisms which, when the system is activated, pull out a pin and release the rear of the bonnet panel. At the same time, the airbag is activated and starts filling with gas. During the inflation sequence the airbag raises the bonnet. It is lifted 10 centimetres and stays in the raised position.
The added gap between the bonnet and the hard components in the engine compartment gives space for the bonnet to deform, creating a dampening effect when it is hit by a pedestrian.
“The Pedestrian Airbag has two functions. Firstly, it raises the bonnet to create distance, and secondly it cushions the impact around the hard parts of the area near the windscreen,” explains Thomas Broberg.

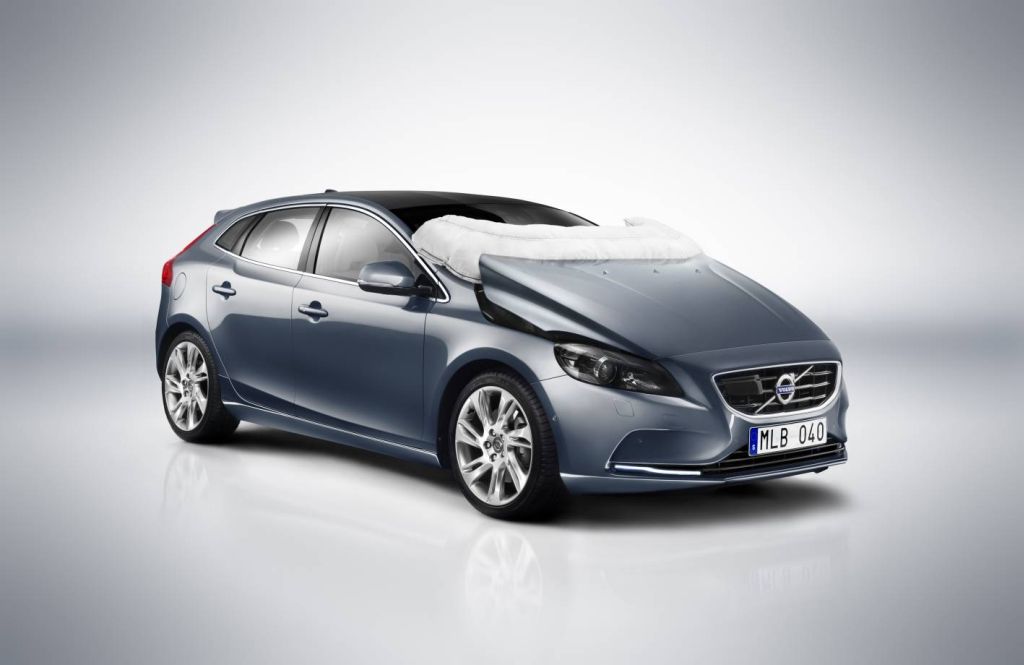

In its inflated position, the airbag covers the entire windscreen wiper recess, about one-third of the windscreen and the lower part of the A-pillars. The entire sequence from activation of the system to full inflation takes a few 100ths of a second.
The system is active at speeds between 20 and 50km/h – 75 percent of all accidents involving pedestrians take place at up to 40km/h.
“We developed the technology using computer simulations and human-like leg and head forms. The tests were carried out in a wide variety of configurations,” relates Thomas Broberg.
The airbag itself consists of a sack and a gas hybrid generator. Upon activation, the sack is filled with gas within a few milliseconds.
In 2010, the Volvo Car Group launched Pedestrian Detection with Full Auto Brake. The system can avoid a collision with a pedestrian at speeds of up to 35km/h if the driver does not respond in time. At higher speeds the focus is on reducing the car’s speed as much as possible before the collision
